The device is available with three different backplate variants to accommodate different wheel sizes and regional configurations.
Available Variants
| US Backplate | 32 Backplate | EU Backplate |
|---|---|---|
| WEM-200/USPP | WEM-200/32PP | WEM-200/EUPP |
| US version | European version | European version |

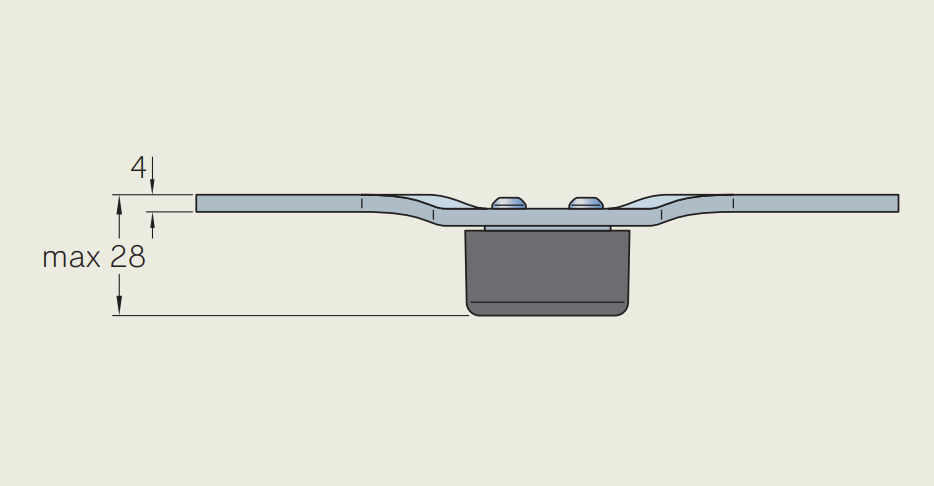

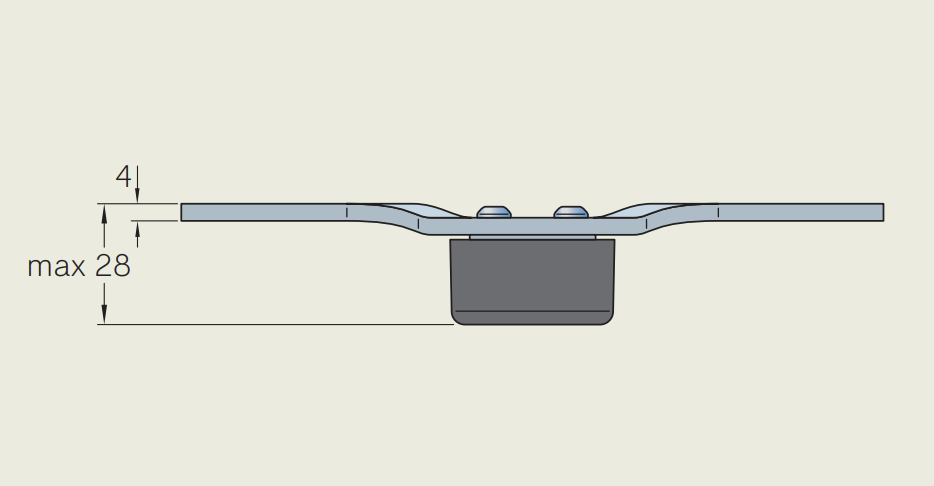

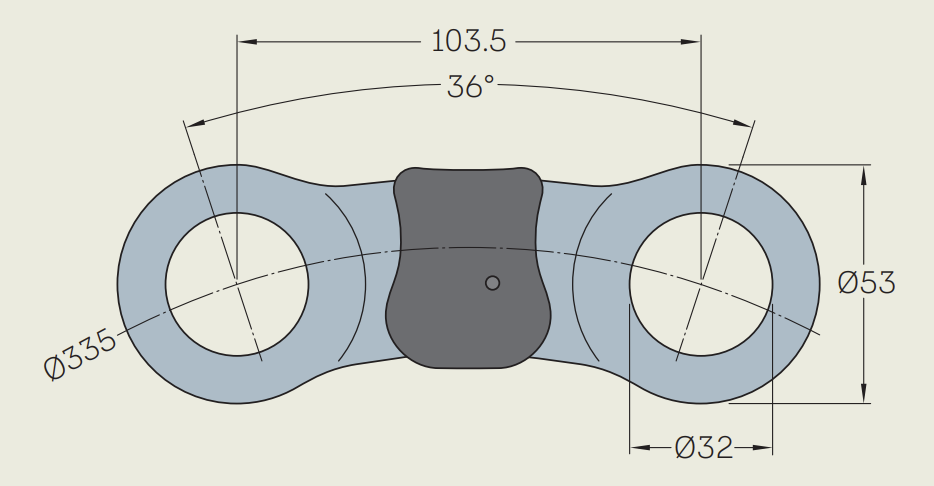

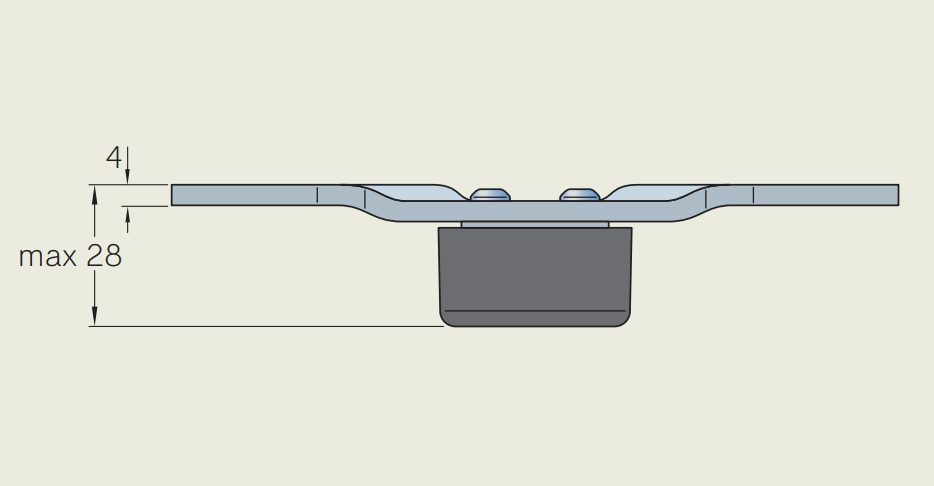

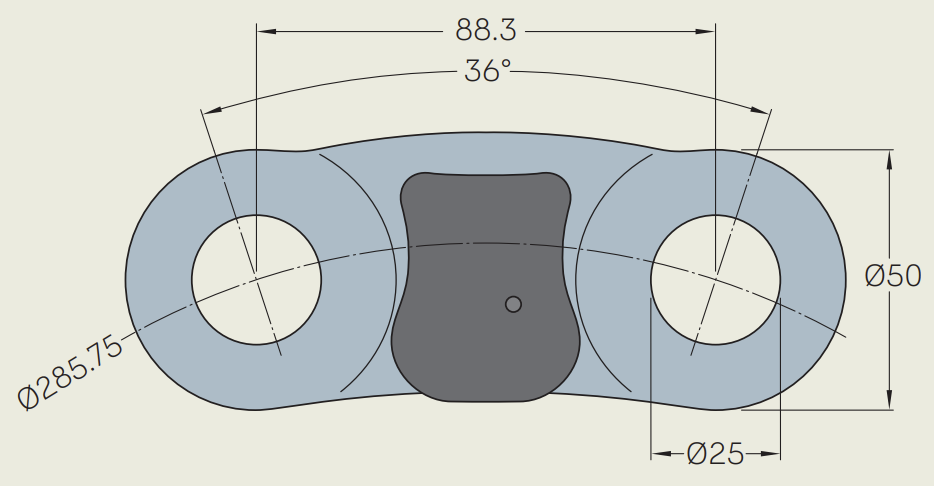

Dimensions
Unless otherwise stated, all dimensions are provided in millimeters (mm).
For the latest and complete technical drawings, refer to Chapter 12 in the Technical Specification (Connected Version).
Selecting the correct backplate

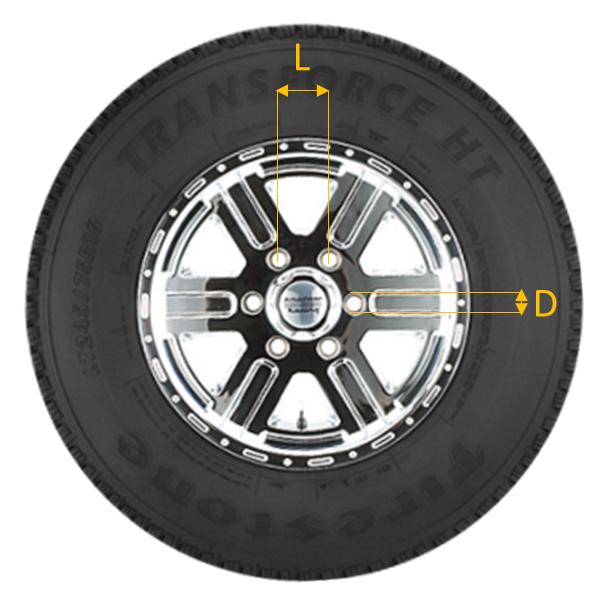

The illustration below shows how to map the wheel dimensions to the appropriate backplate variant.
Ensure that wheel measurements are verified before selecting and installing the backplate to guarantee proper fitment and performance.
